Overview:

What is MIM and Why Mixing Matters?
Metal Injection Moulding (MIM) is a high-precision manufacturing process that combines the flexibility of plastic injection moulding with the strength of sintered metal. This hybrid process allows for the mass production of complex metal parts with tight tolerances, making it ideal for industries like medical, automotive, defense, electronics, and more.

At the heart of the MIM process lies a critical material — the feedstock, which is a precisely blended mixture of:

• Fine metal powder (typically <20 microns in size)
• Thermoplastic binders
• Waxes

Achieving uniform dispersion of these ingredients is not just a quality requirement — it’s a production necessity. Any inconsistency in feedstock leads to poor mould filling, dimensional instability, surface defects, or part failure during sintering.

The Challenge:

Uniform Mixing of Dissimilar Powders
One of Alphie’s customers in the MIM industry decided to develop their own in-house feedstock using a proprietary binder formula. The goal was to optimize product performance while maintaining process control. However, the real challenge lay in homogeneously blending materials of vastly different densities and flow characteristics.

Key pain points included:

1.Very fine metal powder (<20 µm) with low flowability

2. Binder and wax powders with much higher bulk densities and sticky behavior

3. Tendency of conventional mixers (Z-blade, paddle, drum) to create:

• Layered separation
• Hot spots
• Non-uniform batches

This led to unpredictable results in moulding and sintering — defeating the very purpose of their in-house control.

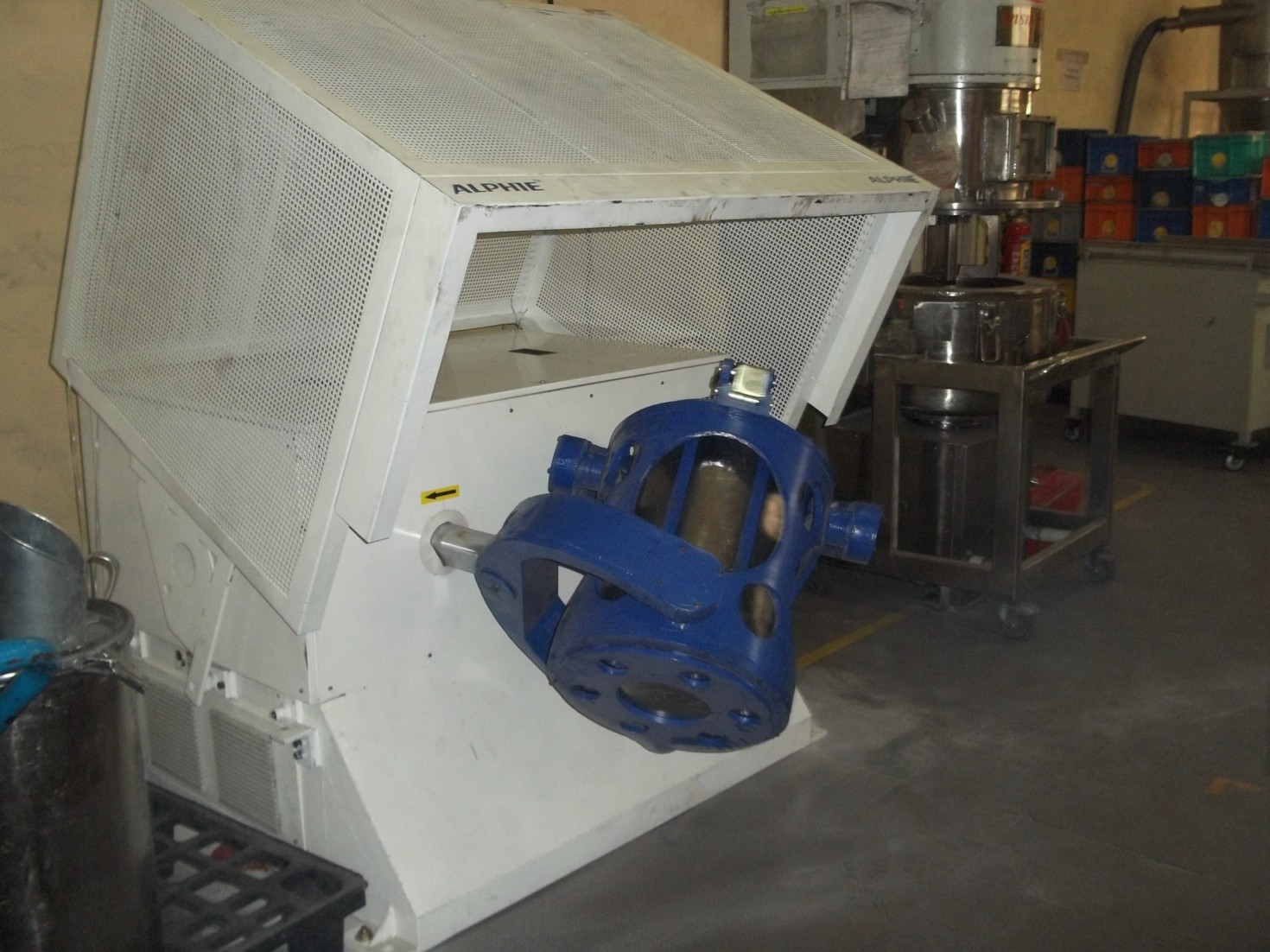

The Solution: Alphie Mixer (Model Alphie 50)

To solve these problems, the customer implemented the Alphie 50 model, a 3D inversion-type tumbling mixer specifically designed for homogenous powder blending across a wide range of densities and particle sizes.

What set Alphie apart was not just the mixing performance — it was the design convenience, operator-friendliness, and batch repeatability.

Key Features That Delivered Results

3D Tumbling Motion
Unlike traditional blade or ribbon mixers that shear the material, Alphie operates with gyroscopic inversion motion, creating a tumbling effect that allows powders to interpenetrate naturally. This is especially useful for fine and dense particles, reducing segregation and dead zones.

Removable Stainless-Steel Drums
The Alphie 50 comes with interchangeable mixing drums, which allowed the customer to:

• Pre-fill drums while the previous batch is running
• Eliminate downtime for loading/unloading
• Maintain full batch isolation and traceability

No Need for Layered Filling
Conventional mixers often require careful layered filling of heavy and light powders to reduce segregation. Alphie’s movement ensures complete integration without manual layering.

Dust-Free, Sealed Mixing
With Alphie’s closed container design, the risk of fine metal dust contaminating the workspace was eliminated — ensuring both operator safety and cleanroom compliance.

Custom Trolley for Ergonomic Drum Handling
To support operators, a manual trolley was developed for safely lifting and maneuvering filled drums, reducing fatigue and encouraging larger batch sizes.

Real-World Results

Mixing Parameters Used:

• Mixer Model: Alphie 50
• Speed: 30 RPM
• Mixing Time: 15 minutes
• Fill Volume: 30% of drum capacity
• Drum Type: Polished stainless steel, removable

Outcomes Achieved:

• Perfect dispersion of binder and wax into metal powder
• Elimination of clumping or hot spots
• Zero overheating of thermoplastic material

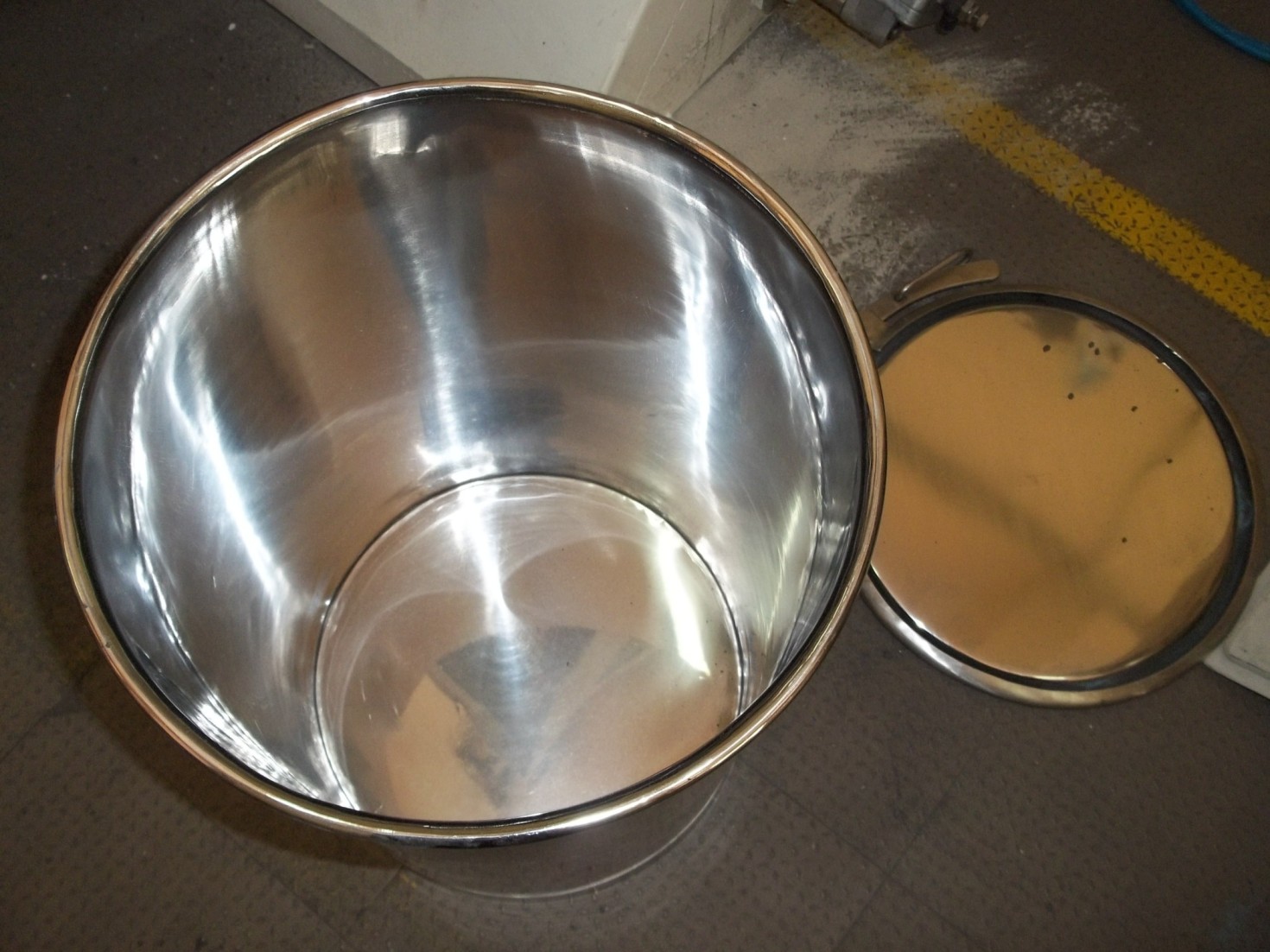

• Clean mixing with no residue sticking to the drum
• Improved feedstock consistency → better mould filling and fewer sintering defects

Why Choose Alphie for MIM Feedstock Blending?

Alphie mixers are engineered specifically for powder mixing applications where precision, safety, and scalability matter. Whether you’re a lab-scale R&D unit or a full-scale MIM production house, Alphie offers models to suit every stage.

Benefits of Using Alphie in MIM Industry:

• Compatible with thermally sensitive binders
• Handles nano and micron-scale particles equally well
• Requires no cleaning between batches when drums are swapped
• Available in GMP-compliant SS316 construction for pharma-grade manufacturing
• Safe for metal powder handling with anti-static designs

About Alphie Mixers

Alphie is a product of Hexagon Product Development Pvt. Ltd, a DSIR-recognized company based in Vadodara, India. With its deep design expertise and extensive industry applications,

Alphie mixers are widely adopted in:

• Pharmaceutical R&D
• Powder metallurgy
• Ceramics & pigments
• Additive manufacturing
• Firecracker and defense mixing
• Nutraceuticals and dietary blends
