Firecracker Manufacturing Gets Safer and Smarter with Alphie Mixers: A New Era in Explosive Powder Mixing
Introduction
Fireworks are deeply woven into the fabric of celebrations worldwide. From Diwali and weddings to national events, they bring color, sound, and joy. India holds the position as the second-largest manufacturer of firecrackers, with a massive network of local units producing products like Sparklers, Anars (Flowerpots), Chakris, and more.
But behind this joy lies a shadow — the high-risk process of powder mixing, traditionally done by hand. The blending of aluminium powder, potassium nitrate, sulphur, and other volatile chemicals is fraught with risk. One spark or misstep can result in catastrophic explosions. Unfortunately, the industry has seen many such accidents over the years.
The Challenge: Safety and Uniformity in Powder Mixing
Fireworks production involves:
- Wet mixing, as in sparklers (aluminium + DM water)
- Dry mixing, used in most other fireworks (aluminium + nitrates + additives)
Until recently, these powders were manually mixed in open trays. Workers would knead or stir powders for several minutes or hours, depending on batch size. This method brought:
- Batch inconsistencies
- High labour reliance
- Unacceptable levels of risk due to friction, static charge, and human error
The industry needed a solution that could offer reliable mixing performance while completely isolating operators from the hazardous zone.
The Alphie Solution: Models Alphie 10 and Alphie 35 ES
Alphie mixers stepped in with a radical design shift — one that prioritized both process consistency and human safety.
Key Innovations in This Application:
1.Through-Wall Safety Construction

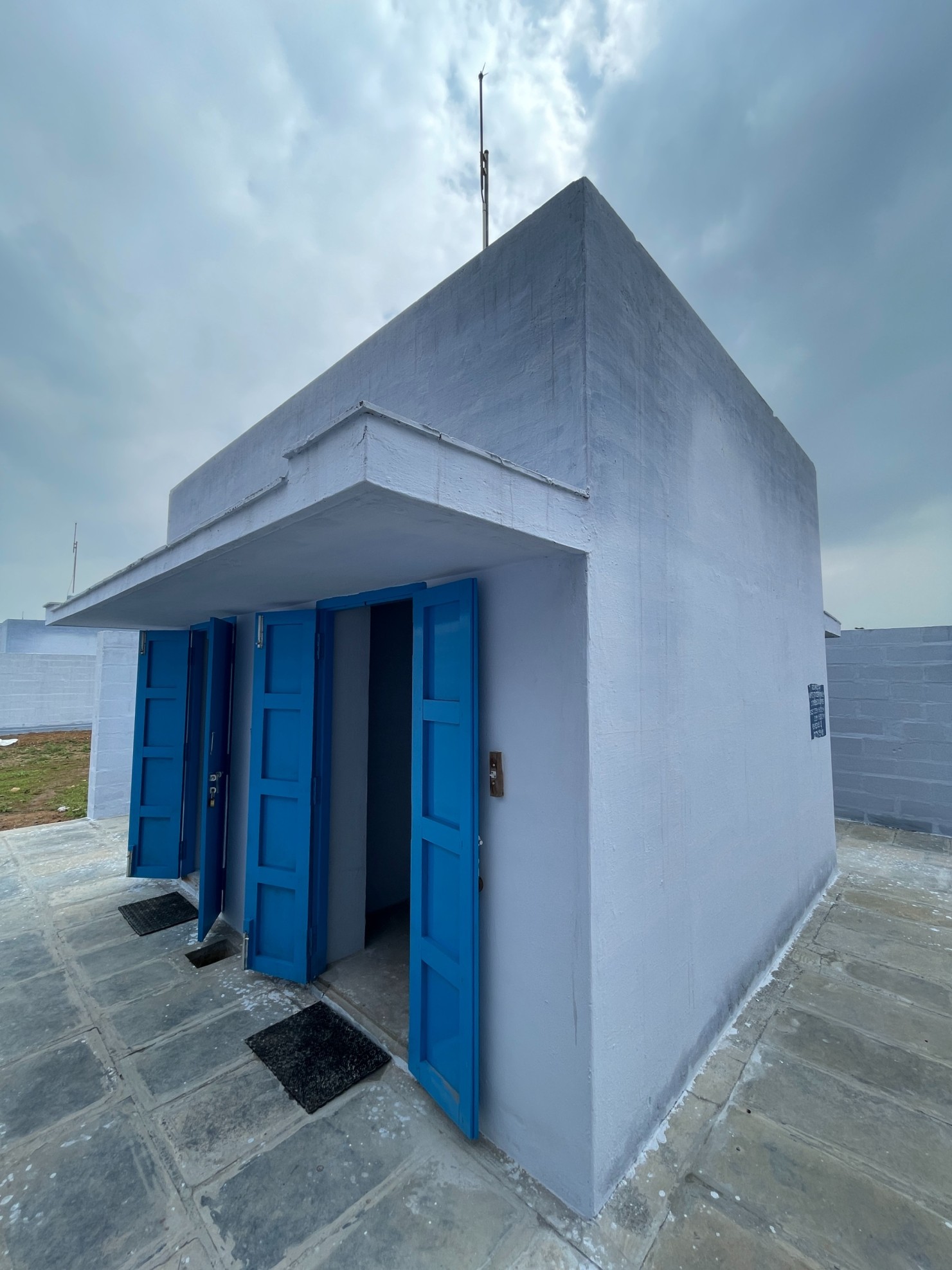

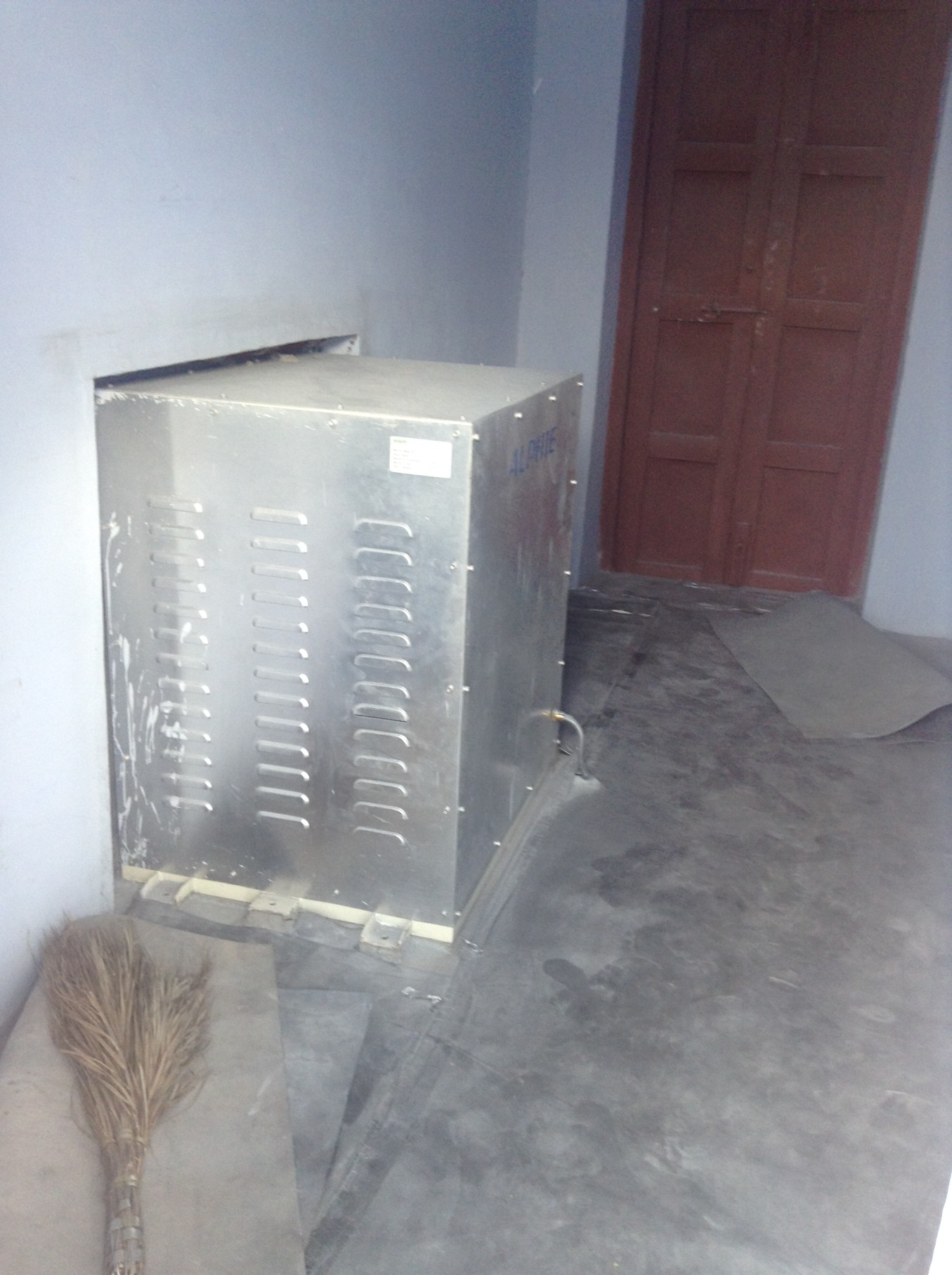

- The mixing drum is located in a sealed room, physically separated by a wall from the drive and control unit.
- Operators do not enter the mixing room at all once the mixer is running.
2.Integrated Safety Interlocks
- Prevent mixer from starting unless the room is sealed
- Immediately cut power if access door is opened
3.Non-Iron Mixing Containers
- Aluminium containers are used to eliminate ferrous contact, which is a known ignition risk in the presence of sensitive chemicals
4.Electrostatic Control
Alphie mixers used here are equipped with:
- Flameproof motors
- Dustproof enclosures
- Non-ferrous body materials
- Conductive rubber components that ground out static charges
5.Compact, Single-Phase Powered Units
- Allows small manufacturers to adopt Alphie mixers without major infrastructure changes
Real-World Performance
Mixing Parameters:
- Speed: 70 RPM
- Duration: 5 minutes
- Container Fill: 50%
With these settings, fireworks manufacturers achieved:
- Uniformly blended batches in significantly less time
- Accident-free operation, thanks to complete personnel isolation
- A major shift in mindset — manual mixing is now being phased out industry-wide
Why Alphie?
Alphie mixers stand apart because of their gentle yet effective 3D mixing motion, which:
Requires no internal blades, avoiding particle breakage
Ensures all particles move uniformly
Prevents layering or segregation, even in powders with different densities
Combined with custom container options, safety-driven design, and ease of use, Alphie is now seen as the standard for safe powder mixing in high-risk industries.
Customer Impact
- By adopting Alphie, cracker manufacturers have:
- Eliminated direct human contact with active powders
- Reduced batch-to-batch variability
- Gained peace of mind with zero reported incidents post-deployment
- Improved production speed without compromising safety
