Overview: Diamond Tools and the Need for Precision

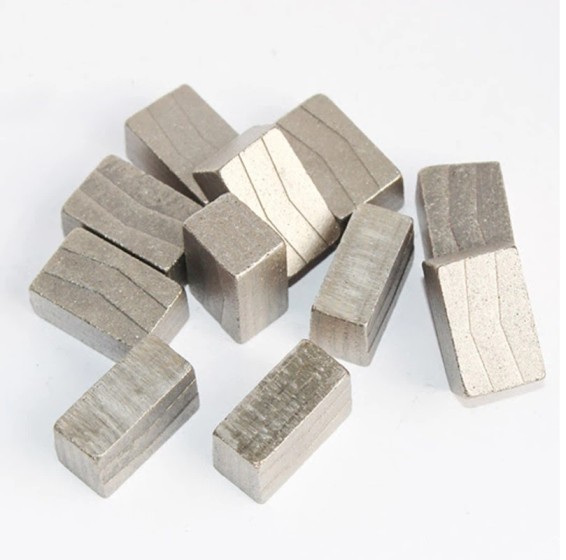

In industries like construction, marble finishing, and monument creation, diamond tools are indispensable. These tools are engineered to cut, grind, polish, and drill extremely hard stones such as granite, quartzite, and marble. At the core of their performance lies a precise blend of diamond grit and bonding materials — usually metallic or resin-based powders.
Manufacturers in this segment face intense pressure to deliver high-quality tools that are consistent, durable, and efficient. And that quality begins at the mixing stage.

The Manufacturing Challenge

Despite years of experience and process control, many tool manufacturers faced a common issue: batch-to-batch inconsistency in the abrasive blend.

Diamond powders have a very high bulk density (~3.5 gm/cc or more), while typical resin binders are significantly lighter — around 0.5 gm/cc. This extreme difference makes it difficult to achieve a uniform mixture using conventional equipment such as:

• Rotary drum blenders
• Ribbon mixers
• Z-blade mixers

Some factories relied on overnight mixing (10–12 hours) just to get an acceptable result. Yet, tool performance varied, and tool life often fell short of expectations. Inconsistencies led to product rejection and ultimately opened the door for imported tools to gain market share.

The Game-Changer: Alphie 3D Mixer

To address this pressing issue, several manufacturers adopted the Alphie 10, a compact 3D tumbling mixer by Hexagon Product Development Ltd. The mixer brought with it a revolution in powder blending for this sector.

What Makes Alphie Different?

Alphie mixers use a Paul Schatz-based 3D inversion motion, which ensures every part of the powder bed is moved equally — no dead zones, no segregation.

Key technical innovations:

• Super 8 motion: Unlike traditional tumblers, Alphie’s motion is based on spatial inversion and gyroscopic forces. This unique pattern exposes all particles to dynamic but gentle movement.
• Media-free design: The mixer does not use blades or paddles, thus avoiding particle damage or local heating.
• Separate, removable mixing containers: Offers ease of handling and faster batch turnover.

Implementation Details

In this particular case, the client transitioned from their legacy drum mixer to an Alphie 10. Key highlights of the implementation:

• Mixing materials: Diamond grit + resin binder (powder form)
• Container material: Low-cost PET bottles (easily available and disposable)
• Mixing pattern: 10 minutes forward motion + 10 minutes reverse
• Container fill volume: 60%
• Speed: 50 RPM

The result? A perfect blend in 20 minutes, compared to 12 hours previously.

Operational Benefits

Here’s how Alphie contributed beyond just blending:
1. Drastic time reduction: Output increased 3–4x per shift.
2. Cost-effective container usage: Using PET bottles avoided expensive steel drums.
3. Consistency across batches: Mixing homogeneity reached repeatable standards, reducing tool rejection rate.
4. Adaptability: The mixer worked flawlessly in the dusty, semi-automated production floor.
5. Labour-friendly operation: Minimal training was needed, empowering even rural operators to run the equipment effectively.

Why Mixing Matters in Diamond Tool Performance

Improperly mixed powders lead to:

• Uneven distribution of diamonds → weak cutting edges
• Agglomeration of resin → soft spots in the tool matrix
• Early tool wear → customer dissatisfaction

With Alphie, manufacturers ensured that each diamond grain was properly embedded and dispersed, leading to:

• Higher cutting efficiency
• Longer tool life
• Reduced rejection and customer complaints

About Alphie 3D Tumbling Mixers

Alphie Mixers, developed by Hexagon Product Development Ltd, are used worldwide across industries such as:

• Pharmaceuticals
• Metal powders
• Ceramics
• Nutraceuticals
• Thermal coatings

Key product features:

• Available from 1-litre lab models to 1000-litre industrial machines
• Option for stainless steel GMP-compliant construction
• Powder-coated MS models for non-contact material requirements
• Can operate with sealed, contamination-free containers
• Integrates with NIR sensors, liquid dosing, or ball media as needed

The flexibility and efficiency of Alphie have made it a trusted choice for industries where mixing quality directly impacts product performance.

Conclusion

By adopting Alphie Mixers, diamond tool manufacturers have been able to reclaim quality, reduce production time, and compete effectively with imported products. The Alphie 10 not only solved their density mismatch issue but also brought process reliability, scalability, and cost-efficiency into the blending stage.
