Overview

Gel-like pharmaceutical formulations often require a delicate balance — precision, uniformity, and zero compromise on API integrity. In this case, Alphie was selected to address a specific challenge in the formulation of Lanreotide Acetate Autogel, a treatment for hormonal disorders and tumors. The end product had to be a homogeneous, injectable gel, combining a highly fine powder with a carefully dosed liquid — a process that conventional mixers could not handle reliably.

The Challenge: Mixing Opposites Under Precision

The pharmaceutical team needed to blend:
– Lanreotide powder with bulk density of ~0.05 g/cc
– Acetic acid solution, with density exceeding 1 g/cc

This formulation needed:
– Deep liquid penetration without leaving dry powder pockets
– No blade contact to preserve the gel structure
– Controlled dosing of the liquid — not all at once, but distributed over the initial phase of the blending process

Conventional blade or ribbon mixers showed the following issues:
– Powder sticking to blades
– Over-shearing of partially formed gel
– Liquid pooling on surface, failing to penetrate the powder mass

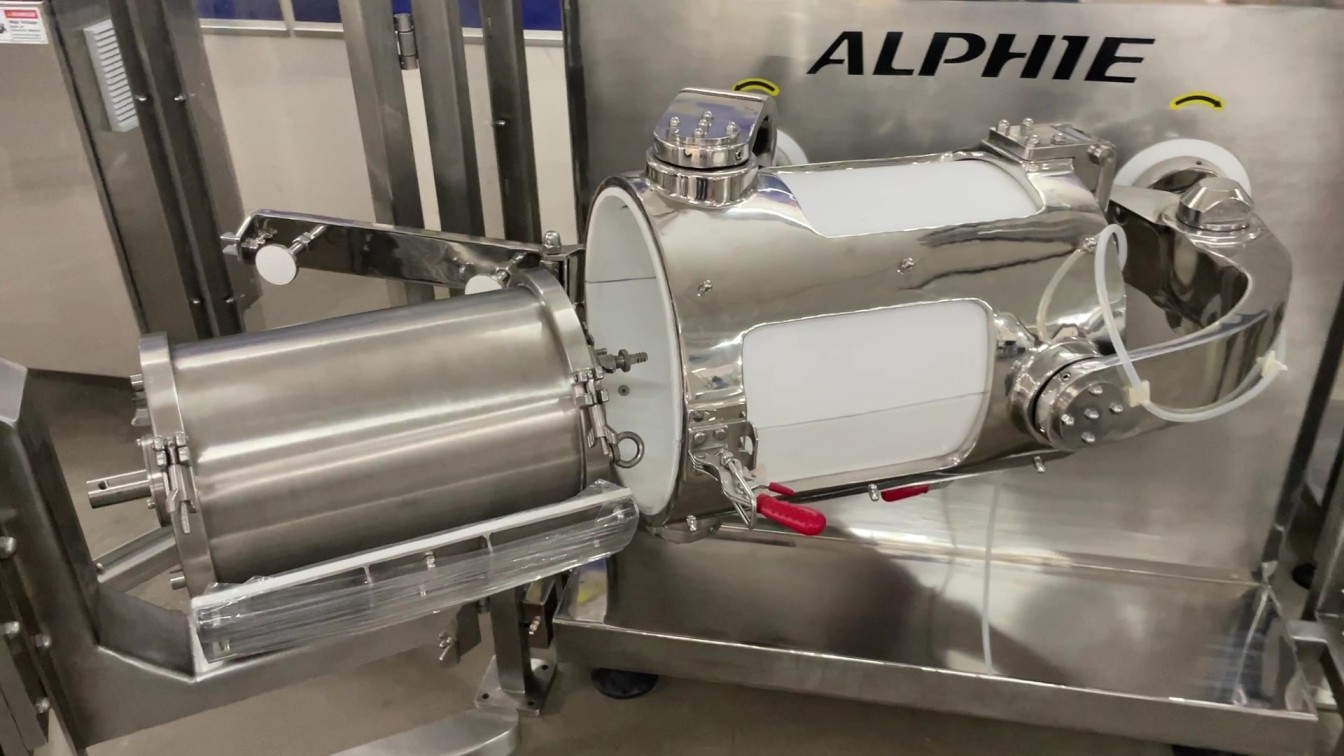

The Alphie Mixer Advantage: Model Alphie 35 with Liquid Injection System

Alphie provided a completely redesigned mixing platform — integrating its signature 3D tumbling motion with a custom liquid injection module.

Key Features:

1. 3D Spatial Mixing
– The tumbling motion ensures full powder circulation in every axis
– Allows powder and liquid to flow naturally into each other, without shearing

2. SS316 Construction
– All contact parts were made using pharma-grade stainless steel (SS316)
– Surfaces were electropolished, ensuring smooth powder flow, no residue, and easy cleaning

3. Integrated Liquid Dosing System
– A fine-tuned peristaltic pump was linked to the Alphie’s PLC
– The dosing was programmed to occur only during the first 50% of mixing time
– Ensured that the liquid merged progressively into the powder mass

4. Quick-Fit Silicone Hose Assembly
– A specially designed quick-connect system enabled the peristaltic pump to transfer acetic acid directly into the sealed container
– No manual handling, no need to open the mixer mid-cycle

Real-Time Parameters Used

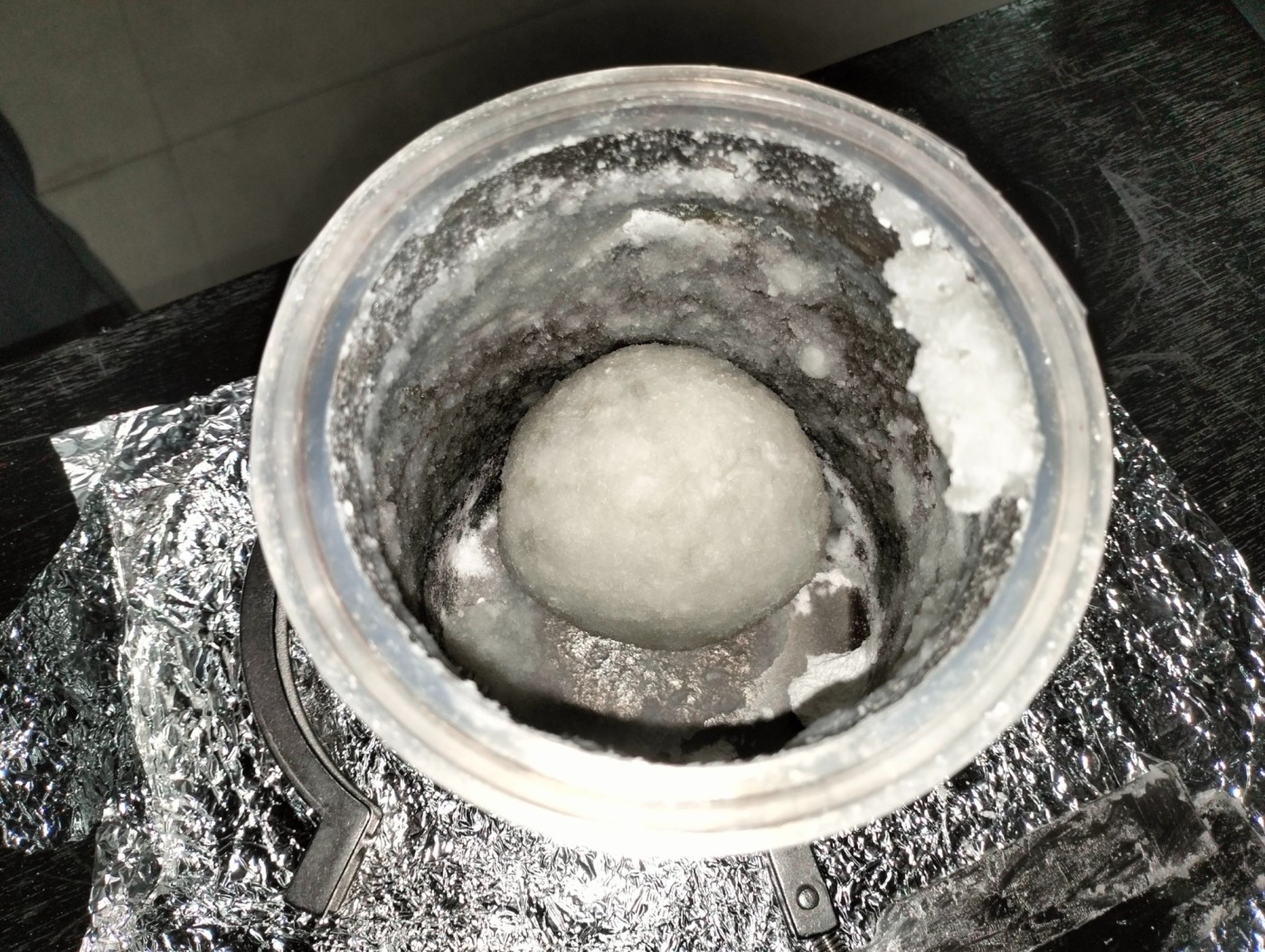

The final blend formed a uniform, gel-like mass with high viscosity and stability, suitable for sterile injectable filling.

Why Conventional Mixers Failed

Unlike Alphie, traditional blade-based mixers:

– Rely on mechanical agitation, which shears the powder-liquid interface
-Fail to evenly distribute high-viscosity liquids
-Cause clumping or incomplete blending, especially in slow-flowing powders

Alphie’s non-invasive tumbling motion eliminates these issues while enabling precise process control — making it ideal for critical pharmaceutical preparations.

Alphie: Designed for Pharma R&D and Scale-Up

The Alphie 35 model offers:
– Compact design, perfect for lab or pilot-scale formulation
– PLC integration for cycle control and dosing synchronization
– Pharma-compliant material contact zones
– Repeatability across batches

With this setup, pharma customers achieve:
– Better homogeneity
– Less material wastage
– Shorter development-to-scale-up timelines

Results

Post-integration, the customer reported:
– Near-zero batch rejection
– Repeatable gel consistency
– Elimination of manual dosing
– High operator safety and ease of cleaning

Conclusion

Alphie mixers have once again proven their value in specialized blending environments. When dealing with gel-like formulations, especially in sensitive drug delivery systems, precision blending and timing of ingredients is key. Alphie not only meets this need — it sets a new benchmark for how formulation blending should be done in pharma.
